- New

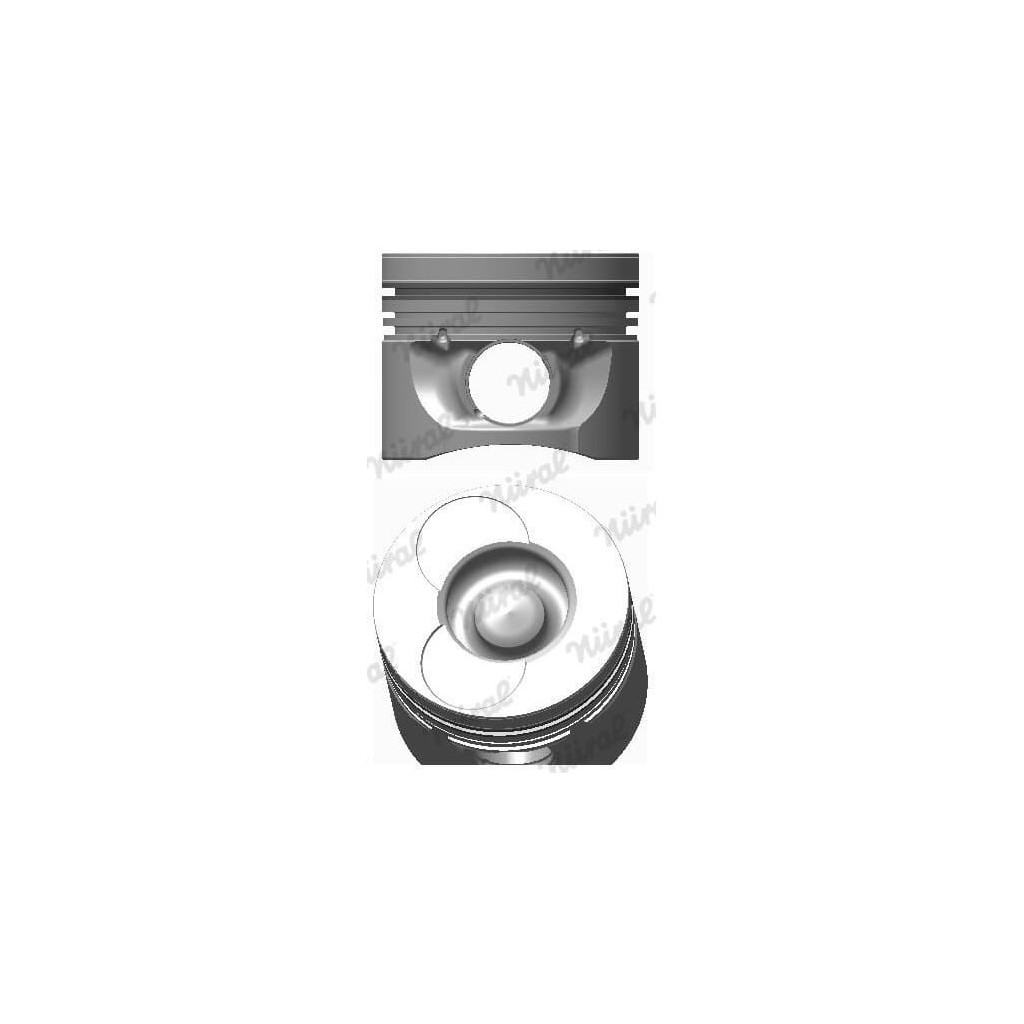

Nural piston 89.50 fits Mercedes E290 G290 Sprinter 2.9 1995- OM602.98x
€58.49
VAT included
Article Info: with cooling duct, with piston ring carrier
Recess Depth 1: 16.74 mm
Oversize: 0.5 mm
Compression Height: 44.75 mm
Height: 71.3 mm
Cyl.Bore: 89.5 mm
Bolt Ø: 28 mm
Recess Diameter: 42 mm
Bolt Length: 70 mm
Valve Pocket Depth 1: 0.6 mm
Valve Pocket Depth 2: 0.3 mm
Component No.: 08-743107-00
Machined: with cut-out for oil jet
Recess Depth 1: 16.74 mm
Oversize: 0.5 mm
Compression Height: 44.75 mm
Height: 71.3 mm
Cyl.Bore: 89.5 mm
Bolt Ø: 28 mm
Recess Diameter: 42 mm
Bolt Length: 70 mm
Valve Pocket Depth 1: 0.6 mm
Valve Pocket Depth 2: 0.3 mm
Component No.: 08-743107-00
Machined: with cut-out for oil jet

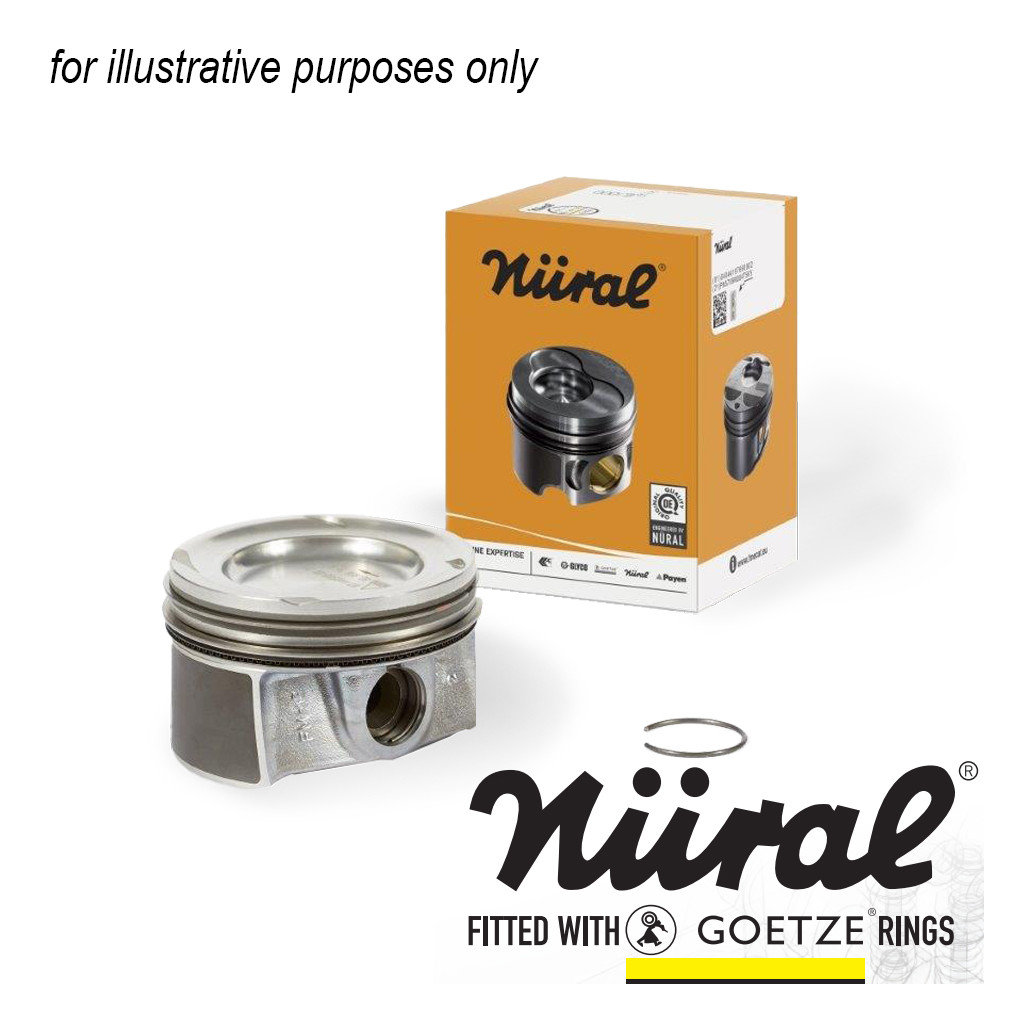

Nüral pistons fitted with Goetze rings, both from Federal-Mogul, offer OE-quality performance trusted by leading automotive manufacturers. Designed for durability and precision, they ensure optimal engine efficiency, sealing, and reliability.
87-743107-00
10 Items
Data sheet
- Region
- Turkey
- Reference OE/OEM Number
- A6020300517
A6020300617
A6020300717
A6020300817
A6020300917
A6020301017
- Mercedes
- G II (W461) 1989 - current
- G 290 TD (2.9L / 120 Hp / Diesel / OM 602.983)
- E Saloon II (W210) 1995 - 2003
- E 290 Turbo-D (2.9L / 129 Hp / Diesel / OM 602.982)
- E Estate II (S210) 1996 - 2003
- E 290 T Turbo-D (2.9L / 129 Hp / Diesel / OM 602.982)
Specific References
New
Article Info: with cooling duct, with piston ring carrier
Recess Depth 1: 16.74 mm
Oversize: 0.5 mm
Compression Height: 44.75 mm
Height: 71.3 mm
Cyl.Bore: 89.5 mm
Bolt Ø: 28 mm
Recess Diameter: 42 mm
Bolt Length: 70 mm
Valve Pocket Depth 1: 0.6 mm
Valve Pocket Depth 2: 0.3 mm
Component No.: 08-743107-00
Machined: with cut-out for oil jet
Recess Depth 1: 16.74 mm
Oversize: 0.5 mm
Compression Height: 44.75 mm
Height: 71.3 mm
Cyl.Bore: 89.5 mm
Bolt Ø: 28 mm
Recess Diameter: 42 mm
Bolt Length: 70 mm
Valve Pocket Depth 1: 0.6 mm
Valve Pocket Depth 2: 0.3 mm
Component No.: 08-743107-00
Machined: with cut-out for oil jet
